SG-H Hinged Type Air Grille - Aluminum air diffuser & grille

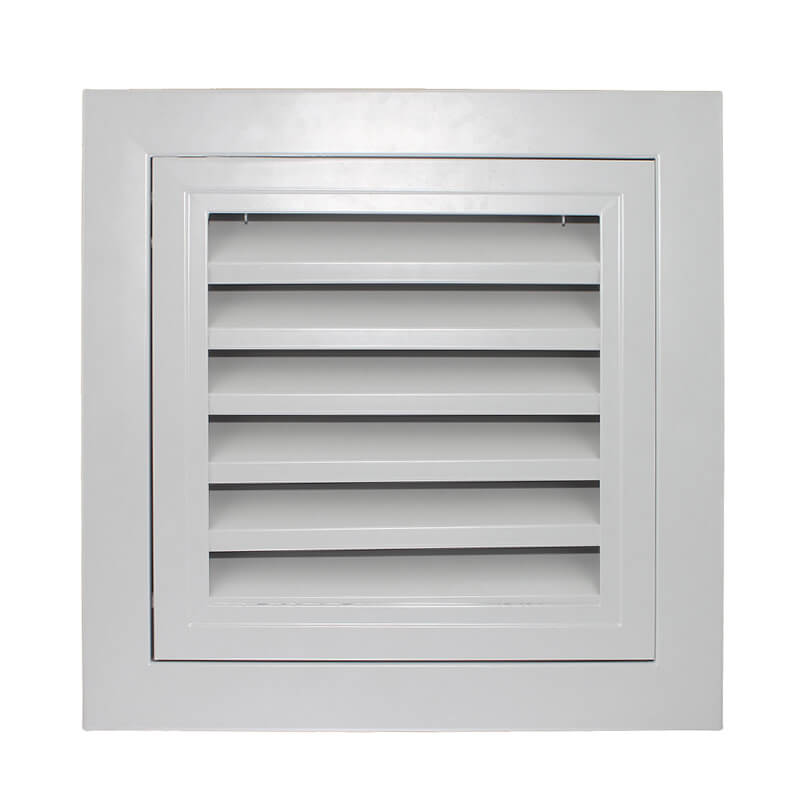

SG-H Hinged Type Air Grille

SG-H Hinged Type Air Grille Blades are set at an angle of 45° with 25mm spacing and fixed to the inner frame by rivets and support pipe.

Product Specification:
  • Place of Origin :

    Guangdong, China (Mainland)

  • Model Number :

    SG-H

  • Type :

    HVAC Systems

  • Material :

    Extruded Aluminum Alloy (Minimum 1.0mm Thickness)

  • Surface Finish :

    Powder coated / Anodized

  • Standard Color :

    RAL9016,9010

  • OEM Service :

    Available

  • Customer's logo :

    Available

Product description

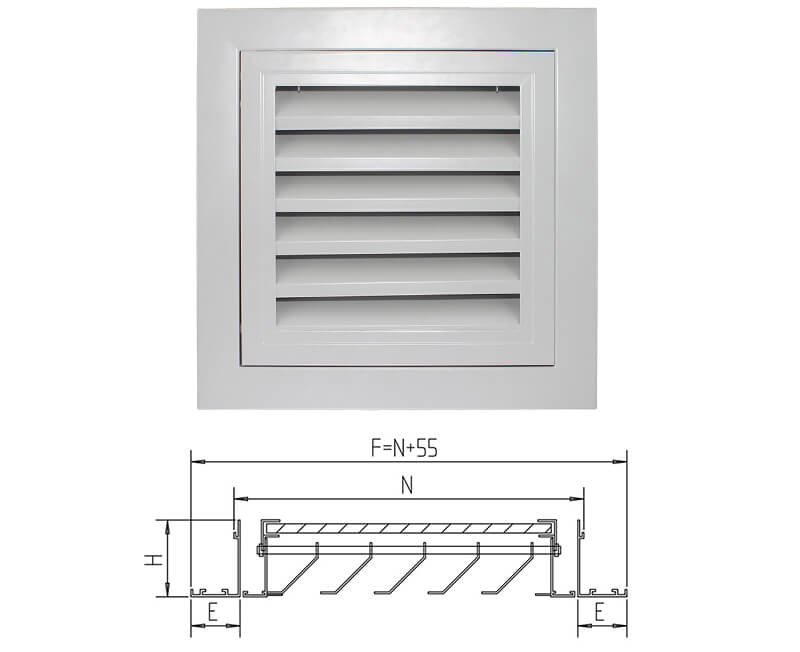

SG-H drawing


Construction:

  • Frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange as standard.
  • Blades: Aerofoil blades in 45° from aluminum profile
  • Blades spacing: 25mm as standard
  • Support pipe: 8mm diameter aluminum pipe


Description:

  • The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.

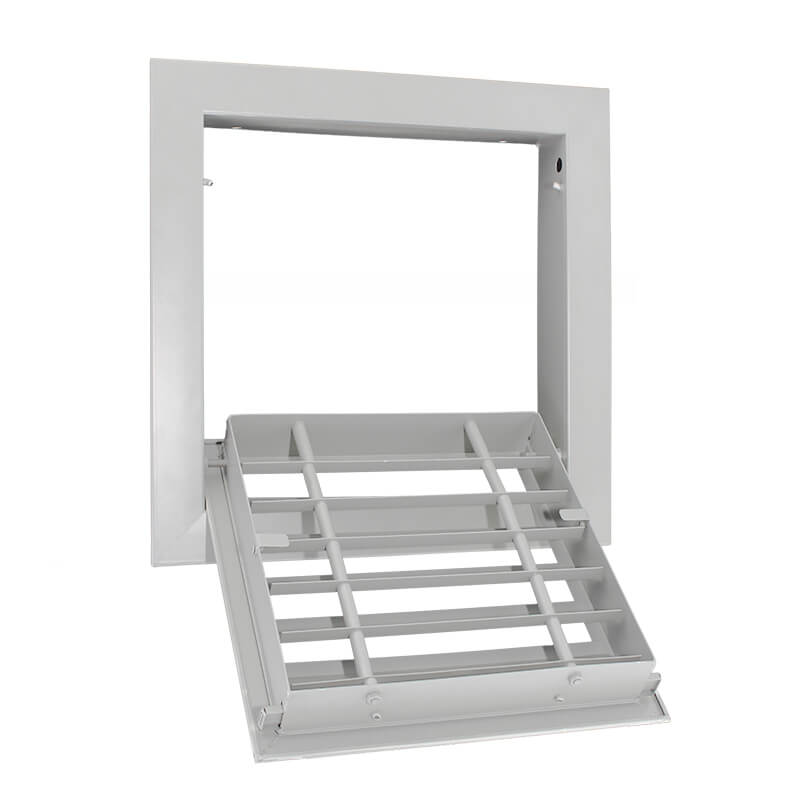

  • The inner core frame is fixed to the outer frame by hinges on one side and by screw on the other side.

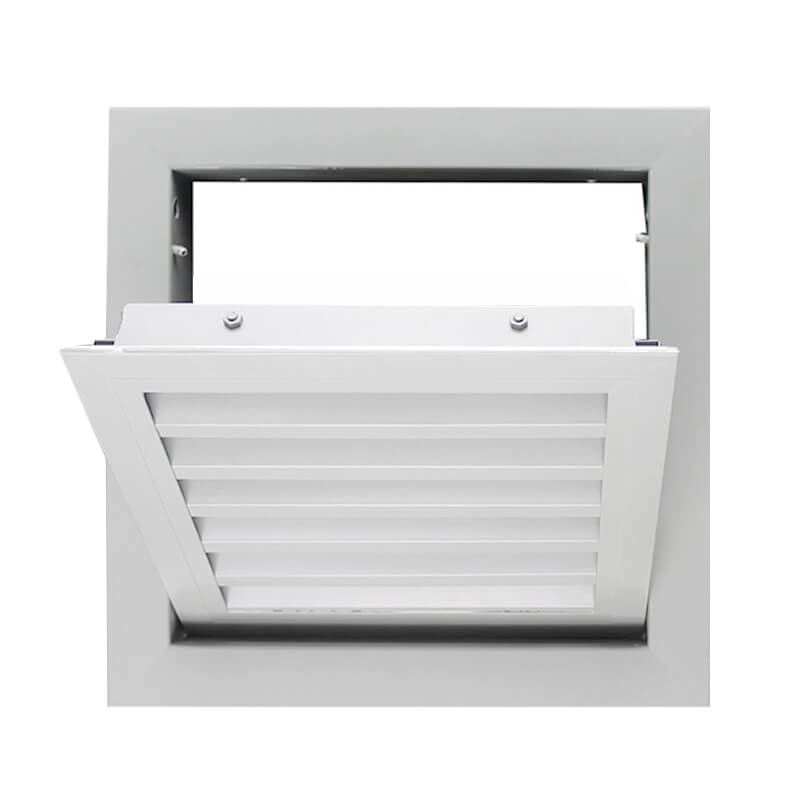

  • Core can be easily open to allow for maximum flexibility in the installation, maintenance.
  • Blades are set at angle of 45° with 25mm spacing, and fixed to the inner frame by rivets and support pipe.


Details:

  • Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010, Natural anodized aluminum finish
  • Material thickness: 1.0mm for option


Size:

  • Any size available
  • Overall face size = Neck size + 55mm
  • Standard size (Neck size=A)

W×H

mm×mm

W×H

mm×mm

W×H

mm×mm

W×H

 mm×mm

W×H

mm×mm

150×150

300×200

400×150

500×150

650×100

200×100

300×250

400×200

500×200

700×250

200×125

300×300

400×250

500×250

750×100

200×150

350×125

400×300

500×300

750×150

250×100

350×150

400×400

500×350

750×200

250×125

350×200

450×100

500×400

750×250

250×150

350×250

450×150

600×125

900×150

250×200

350×300

450×200

600×150

900×200

250×250

350×350

450×450

600×200

1000×200

300×100

400×100

500×100

600×250

1200×150

300×125

400×125

500×125

600×300

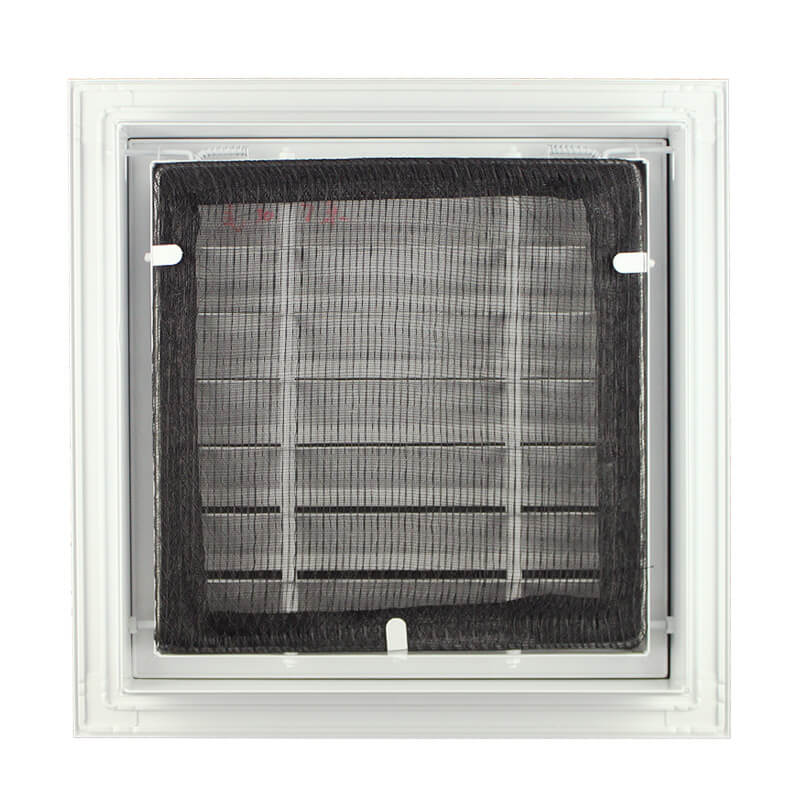

return air grille application
