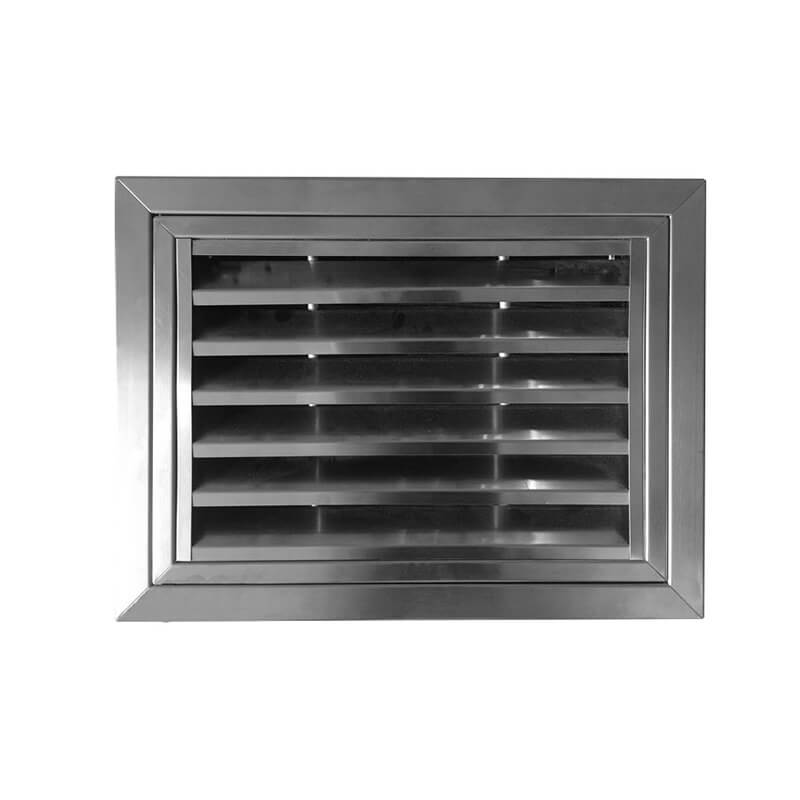

SG-SH Stainless steel hinged return air grille - Stainless steel diffuser & grille

SG-SH Stainless steel hinged return a...

Morbi accumsan ipsum velit. Nam nec tellus a odio tincidunt auctor a ornare odio. Sed non mauris vitae erat consequat auctor eu in elit.

Product Specification:

Place of Origin :

Guangdong, China (Mainland)
Model Number :

SG-SH
Type :

HVAC Systems
Material :

stainless steel 304
Surface Finish :

Brushed
Material thickne... :

Standard 0.5mm
OEM Service :

Available
Customer's logo :

Available

Inquiry Now

May you like

SG-SL Stainless...

SG-SH Stainless...

DDG-S stainless ...

JD-S Stainless S...

Construction:

Frame : High quality stainless steel 304.
Blades : Aerofoil blades in 45° from stainless steel 304.
Blades spacing: 25mm as standard
Support pipe: 8mm diameter aluminum pipe

Description:

The frame & blades are high quality stainless steel 304 construction with advantages of corrosion resistance and rigidity.
The inner core frame is fixed to the outer frame by hinges on one side and by screw on the other side. Core can be easily open to allow for maximum flexibility in the installation, maintenance.
Blades are set at angle of 45° with 25mm spacing, and fixed to the inner frame by rivets and support pipe.

Details:

Surface Finish: Brushed.
Material thickness: Standard 0.5mm
Accessory: OBD(Opposed Blade Damper)

Size:

Any size available
Overall face size = Neck size + 60mm

Standard size:

W×H mm×mm	W×H mm×mm	W×H mm×mm	W×H mm×mm	W×H mm×mm
W×H mm×mm	W×H mm×mm	W×H mm×mm	W×H mm×mm	W×H mm×mm
150×150	300×200	400×150	500×150	650×100
200×100	300×250	400×200	500×200	700×250
200×125	300×300	400×250	500×250	750×100
200×150	350×125	400×300	500×300	750×150
250×100	350×150	400×400	500×350	750×200
250×125	350×200	450×100	500×400	750×250
250×150	350×250	450×150	600×125	900×150
250×200	350×300	450×200	600×150	900×200
250×250	350×350	450×450	600×200	1000×200
300×100	400×100	500×100	600×250	1200×150
300×125	400×125	500×125	600×300
