AD-R Removable Access Panel,access door,door access control - Access panel
AD-R Removable Access Panel,access door,door access control

The frame & swirl blades are high quality extruded aluminum sheet and galvanized sheet construction with advantages of corrosion resistance and rigidity.

Product Specification:
  • Place of Origin :

    Guangdong, China (Mainland)

  • Model Number :

    AD-R

  • Type :

    HVAC Systems

  • Material :

    Extruded Aluminum Alloy (Minimum 1.0mm Thickness)

  • Surface Finish :

    Powder coated / Anodized

  • Standard Color :

    RAL9016,9010

  • OEM Service :

    Available

  • Customer's logo :

    Available

Product description

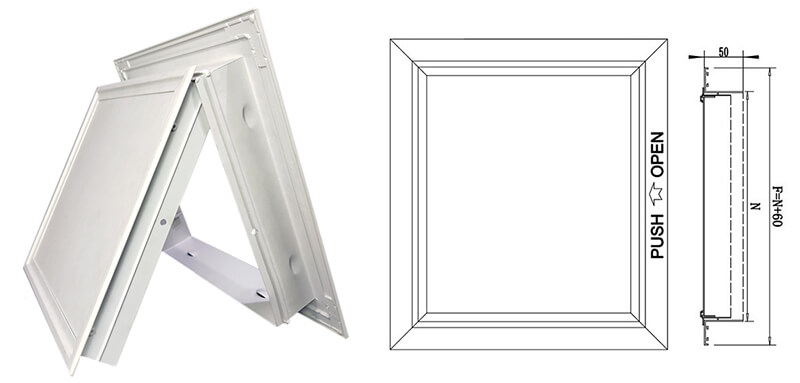

AD-R drawing


Construction:

  • Panel:  High quality galvanized sheet / aluminum alloy.
  • Out frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange


Description:

  • The frame & swirl blades are high quality extruded aluminum sheet and galvanized sheet construction with advantages of corrosion resistance and rigidity.
  • It consists out frame and inner pannel. The inner pannel is fixed to the out-frame by fastener one side and steel spring pins in the other side.
  • The pannel is dischargable from the out-frame by pushing from one side to the other side horizontally.


Surface Finish:

  • Powder coated color finish as per RAL color----standard color: RAL9016


Size:

  • Any size available
  • Overall face size = Neck size + 60mm


Standard size:

Item Code

Neck size(mm)

Face size(mm)

AD-R-200

200x200

260x260

AD-R-300

300x300

360x360

AD-R-400

400x400

460x460

AD-R-450

450x450

510x510

AD-R-600

600x600

660x660



access panel application

Our company

Foshan Vairtech Ventilation Co., Ltd. is a professional manufacturer of hvac ventilation products with more than

20 years experience. Vairtech is one of the leading brands in China now.


Our company is located in the aluminum hometown of China - Nanhai, Foshan, Guangdong, which enjoys the

transportation and raw material convenience.


Vairtech air grilles diffusers showroom


To meet the new age of globalization, we accelerate the pace of development to produce more new products and

provide better service to our customers. We are sincerely welcome you to contact us for business.


Vairtech company

Production process

Vairtech have a rigorous process management system,implement the principle of typical process rules, standardization

and generalization of process equipment, and require process personnel to adhere to a scientific attitude, constantly

improve their technological level, and serve for production.


Vairtech production process

Exhibition

exhibition


2014 we visited Dubai market & our partners

2015 we attended Shanghai HVAC&R Exhibition

2016 we attended Beijing HVAC&R Exhibition and visited Philippine market & our partners

2017 we attended Shanghai HVAC&R Exhibition

2018 we attended Beijing HVAC&R Exhibition and HO CHI MINH HVAC&R Exhibition

2019 we attended Shanghai HVAC&R Exhibition and Bangkok HVAC&R Exhibition

2020 we attended AHR2020 in Orlando, USA Exhibition,we visited American market & our partners

From 2023, we will participate in more exhibitions. Welcome to your visit.

Vairtech exhibition

Feedback

We are engaged in R&D of our products, air diffusers, air grilles, air vents, air dampers, flexible ducts, access panels

and so on. Now, our products are well sold to more than 150 countries with praise for the great structures, various

style, nice appearance and high quality.


Vairtech customers feedback

Packing

Packing ways:

1. Inner pvc individual packing.

2. Outer strong carton packing.

3. Extra pallet & wooden box for optional.

4. Special packing method is available if needed.

access panel packing

FAQ

Q1: Why choose you?

A: We are focus on producing ventilation products of air grilles & diffusers in hvac systems for more than 20 years

and we have a variety of project experience, according to the requirements of different customers to provide the

most appropriate solutions.


Q2: Can you customize in different colors and sizes?

A:
Different colors can be sprayed according to the color card, generally sprayed white, the size can be customized.


Q3: Can I place a sample order to see the quality of the product?

A: Our sample can be given to you for free, you only need to pay the freight. Telling us the sample size you need,

and we will check the freight for you.


Q4: I don't know how to use the product after I get it?
A:
Please contact us, we have online technical support,will tell you how to use or install it,don't worry about that.
